#include <jive/geom/BoundaryPoint.h>

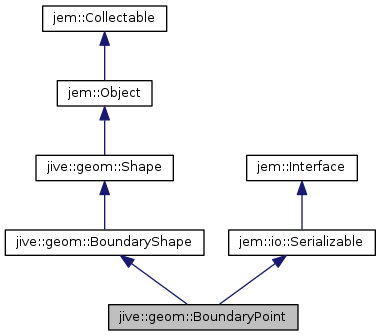

Inheritance diagram for jive::geom::BoundaryPoint:

Public Member Functions
	BoundaryPoint ()

	BoundaryPoint (const String &name, int orient, double point, const Ref< StdShape > &xfuncs, const Ref< StdShape > &sfuncs)

virtual void	readFrom (ObjectInput &in)

virtual void	writeTo (ObjectOutput &out) const

virtual idx_t	localRank () const
	Returns the local rank of this shape. More...

virtual idx_t	nodeCount () const
	Returns the number of nodes. More...

virtual idx_t	vertexCount () const

virtual idx_t	ipointCount () const

virtual idx_t	shapeFuncCount () const
	Returns the number of shape functions. More...

virtual String	getGeometry () const

virtual Matrix	getVertexCoords () const

virtual Matrix	getIntegrationScheme () const

virtual void	getGlobalIntegrationPoints (const Matrix &x, const Matrix &c) const
	Computes the integration points in the global coordinate system. More...

virtual void	getIntegrationWeights (const Vector &w, const Matrix &c) const
	Computes the integration weights in the global coordinate system. More...

virtual void	getGlobalPoint (const Vector &x, const Vector &u, const Matrix &c) const
	Converts a local coordinate vector to a global coordinate vector. More...

virtual bool	getLocalPoint (const Vector &u, const Vector &x, double eps, const Matrix &c) const
	Converts a global coordinate vector to a local coordinate vector. More...

virtual bool	containsLocalPoint (const Vector &u) const
	Tests whether a point lies within this shape. More...

virtual Matrix	getShapeFunctions () const
	Returns the shape functions evaluated in the integration points. More...

virtual Matrix	getVertexFunctions () const

virtual void	evalShapeFunctions (const Vector &h, const Vector &u) const
	Computes the shape functions in a given point. More...

virtual void	evalNormal (const Vector &q, const Vector &u, const Matrix &c) const
	Computes the normal vector in a given point. More...

virtual void	getNormals (const Matrix &q, const Vector &w, const Matrix &c) const
	Computes the normal vectors in the integration points. More...

virtual void	getVertexNormals (const Matrix &q, const Matrix &c) const

virtual void *	getExtByID (ExtensionID extID) const

Public Member Functions inherited from jive::geom::BoundaryShape
virtual int	globalRank () const
	Returns the global rank of this shape. More...

virtual void	getNodeNormals (const Matrix &q, const Matrix &c) const =0
	Computes the normal vectors in the nodes of this shape. More...

virtual jem::Class *	getClass () const
	Returns the `Class` instance representing the runtime class of this object. More...

Public Member Functions inherited from jive::geom::Shape
virtual int	integrationPointCount () const =0
	Returns the number of integration points. More...

virtual Matrix	getLocalNodeCoords () const =0
	Returns the coordinates of the nodes in the local coordinate system. More...

virtual Matrix	getIntegrationPoints () const =0
	Returns the integration points in the local coordinate system. More...

Public Member Functions inherited from jem::Object
virtual String	toString () const
	Returns a short textual description of this object. More...

virtual long	hashValue () const
	Returns a hash value for this object. More...

virtual bool	equals (const Ref< Object > &obj) const
	Tests whether two objects are equal. More...

Ref< Object >	clone () const
	Returns a copy of this object. More...

Protected Member Functions
virtual	~BoundaryPoint ()

void	init_ ()

void	shapeChanged_ ()

void	xshapeChanged_ ()

void	sshapeChanged_ ()

void	getGlobalPoint_ (double &x, const Matrix &c) const

void	updateXFuncs_ ()

void	updateSFuncs_ ()

Protected Member Functions inherited from jive::geom::BoundaryShape
virtual	~BoundaryShape ()

Protected Member Functions inherited from jem::Collectable
	Collectable ()
	Creates an empty `Collectable`. More...

	~Collectable ()
	Frees resources. More...

Protected Member Functions inherited from jem::io::Serializable
virtual	~Serializable ()

virtual void	emitVtableFunc_ ()

Protected Member Functions inherited from jem::Interface
virtual	~Interface ()
	Empty destructor. More...

Additional Inherited Members
Public Types inherited from jive::geom::BoundaryShape
typedef Shape	Super

Public Types inherited from jive::geom::Shape
typedef util::Vector	Vector
	A vector type. More...

typedef util::Matrix	Matrix
	A matrix type. More...

Static Public Member Functions inherited from jive::geom::BoundaryShape
static jem::Class *	getType ()
	Returns a pointer to a `Class` object representing this class. More...

Static Public Member Functions inherited from jive::geom::Shape
static jem::Class *	getType ()
	Returns a pointer to a `Class` object representing this class. More...

Static Public Member Functions inherited from jem::Object
static Class *	getType ()
	Returns the `Class` instance representing the `Object` class. More...

Constructor & Destructor Documentation

jive::geom::BoundaryPoint::BoundaryPoint ( )

jive::geom::BoundaryPoint::BoundaryPoint	(	const String &	name,
		int	orient,
		double	point,
		const Ref< StdShape > &	xfuncs,
		const Ref< StdShape > &	sfuncs
	)

virtual jive::geom::BoundaryPoint::~BoundaryPoint ( )

protectedvirtual

Member Function Documentation

virtual void jive::geom::BoundaryPoint::readFrom ( ObjectInput & in )

virtual

Implements jem::io::Serializable.

virtual void jive::geom::BoundaryPoint::writeTo ( ObjectOutput & out ) const

virtual

Implements jem::io::Serializable.

virtual idx_t jive::geom::BoundaryPoint::localRank ( ) const

virtual

Returns the rank (number of dimensions) of the local coordinate defined by this shape.

Returns: The local rank of this shape.

Implements jive::geom::Shape.

virtual idx_t jive::geom::BoundaryPoint::nodeCount ( ) const

virtual

Returns the number of nodes attached to this shape.

Returns: The number of nodes.

Implements jive::geom::Shape.

virtual idx_t jive::geom::BoundaryPoint::vertexCount ( ) const

virtual

virtual idx_t jive::geom::BoundaryPoint::ipointCount ( ) const

virtual

virtual idx_t jive::geom::BoundaryPoint::shapeFuncCount ( ) const

virtual

Returns the number of shape functions encapsulated by this shape. Note that the number of shape functions and the number of nodes may differ.

Returns: The number of shape functions.

Implements jive::geom::Shape.

virtual String jive::geom::BoundaryPoint::getGeometry ( ) const

virtual

virtual Matrix jive::geom::BoundaryPoint::getVertexCoords ( ) const

virtual

virtual Matrix jive::geom::BoundaryPoint::getIntegrationScheme ( ) const

virtual

virtual void jive::geom::BoundaryPoint::getGlobalIntegrationPoints	(	const Matrix &	x,
		const Matrix &	c
	)		const

virtual

Fills the matrix x with the global coordinates of the integration points encapsulated by this shape: x(i,j) is set to the i-th coordinate of the j-th integration point. The matrix c should contain the global coordinates of the nodes attached to this shape: c(i,j) should be equal to the i-th coordinate of the j-th node.

The default implementation of this function is given by:

Matrix u ( this->getIntegrationPoints() );
int    i;
for ( i = 0; i < u.size(1); i++ )
{
  this->getGlobalPoint ( x(slice(ALL),i), u(slice(ALL),i), c );
}

Parameters

x	- a matrix that will be filled with the global coordinates of the integration points.
c	- a matrix containing the global node coordinates.

Precondition: x.size(0) == this->globalRank() && x.size(1) == this->integrationPointCount() && c.size(0) == this->globalRank() && c.size(1) == this->nodeCount()

Reimplemented from jive::geom::Shape.

virtual void jive::geom::BoundaryPoint::getIntegrationWeights	(	const Vector &	w,
		const Matrix &	c
	)		const

virtual

Fills the vector w with the integration weights in the global coordinate system: w[i] is set to the weight of the i-th integration point. The matrix c should contain the global node coordinates: c(i,j) should be equal to the i-th coordinate of the j-th node.

The following code fragment demonstrates how the integration weights can be used to evaluate the integral of a function over the domain of a shape.

// Evaluates the integral of the function
//
//   f(x,y,z,...) = x + y + z + ...
//
// over the domain of a given shape.
double evalIntegral ( const Shape& shape, const Matrix& c )
{
  const int rank    = shape.globalRank ();
  const int ipCount = shape.integrationPointCount ();
  Matrix x ( rank, ipCount );
  Vector w ( ipCount );
  double r;
  double f;
  int    i;
  shape.getGlobalIntegrationPoints ( x, c );
  shape.getIntegrationWeights ( w, c );
  r = 0.0;
  for ( i = 0; i < ipCount; i++ )
  {
    f  = sum( x(slice(ALL),i) );
    r += w[i] * f;
  }
  return r;
}

Parameters

w	- a vector that will be filled with the global integration weights.
c	- a matrix containing the global node coordinates.

Precondition: w.size() == this->integrationPointCount() && c.size(0) == this->globalRank() && c.size(1) == this->nodeCount()

Implements jive::geom::Shape.

virtual void jive::geom::BoundaryPoint::getGlobalPoint	(	const Vector &	x,
		const Vector &	u,
		const Matrix &	c
	)		const

virtual

Fills the vector x with the global coordinates of a specific point within this shape: x[i] is set to the i-th global coordinate. The vector u should contain the local coordinates of that point: u[i] should be equal to the i-th local coordinate. The matrix c should contain the global node coordinates: c(i,j) should be equal to the i-th global coordinate of the j-th node.

Parameters

x	- a vector that will be set to the global coordinates of the specified point.
u	- a vector containing the local coordinates of that point.
c	- a matrix containing the global node coordinates.

Precondition: x.size() == this->globalRank() && u.size() == this->localRank() && c.size(0) == this->globalRank() && c.size(1) == this->nodeCount() && this->containsLocalPoint ( u )

Implements jive::geom::Shape.

virtual bool jive::geom::BoundaryPoint::getLocalPoint	(	const Vector &	u,
		const Vector &	x,
		double	eps,
		const Matrix &	c
	)		const

virtual

This function tries to convert a global coordinate vector to a local coordinate vector. It returns true if the conversion succeeds and the global coordinate vector points to a location `near' this shape. Otherwise it returns false.

If the return value equals true, the vector u will contain the local coordinate vector: u[i] will be set to the i-th local coordinate. The vector x should contain the global coordinate vector to be converted: x[i] should be equal to the i-th global coordinate. The double eps specifies the maximum allowed distance – in the global coordinate system – between this shape and the location pointed to by the vector x. The matrix c should contain the global node coordinates: c(i,j) should be equal to the i-th coordinate of the j-th node.

Note that a shape class does not have to support this function. In fact, the default implementation of this function simply throws a jem::IllegalOperationException.

Parameters

u	- a vector that will be filled with the local coordinates of the point specified by the global coordinate vector x.
x	- a global coordinate vector.
eps	- the maximum allowed distance between the specified point and this shape.
c	- a matrix containing the global node coordinates.

Precondition: u.size() == this->localRank() && x.size() == this->globalRank() && eps > 0.0 && c.size(0) == this->globalRank() && c.size(1) == this->nodeCount()

Returns: true if the conversion succeeds, and false otherwise.

Reimplemented from jive::geom::Shape.

virtual bool jive::geom::BoundaryPoint::containsLocalPoint ( const Vector & u ) const

virtual

Returns true if the point specified by the local coordinate vector u lies within this shape, and false otherwise.

Parameters

u	- a local coordinate vector.

Precondition: u.size() == this->localRank()

Returns: true if the specified point lies within this shape, and false otherwise.

Implements jive::geom::Shape.

virtual Matrix jive::geom::BoundaryPoint::getShapeFunctions ( ) const

virtual

Returns a matrix containing the values of the shape functions in the integration points of this shape. If the returned matrix is denoted by h, then h(i,j) equals the value of the i-th shape function in the j-th integration point.

The contents of the returned matrix should not be modified because it may share its data with one of the private members of this shape.

Returns: A matrix containing the values of the shape functions in the integration points.

Implements jive::geom::Shape.

virtual Matrix jive::geom::BoundaryPoint::getVertexFunctions ( ) const

virtual

virtual void jive::geom::BoundaryPoint::evalShapeFunctions	(	const Vector &	h,
		const Vector &	u
	)		const

virtual

Fills the vector h with the values of the shape functions in a specific point within this shape: h[i] is set to the i-th shape function in that point. The vector u should contain the local coordinates of the point: u[i] should be equal to the i-th local coordinate.

Parameters

h	- a vector that will be filled with the values of the shape functions in a specific point within this shape.
u	- a vector containing the local coordinates of the specified point.

Precondition: h.size() == this->shapeFuncCount() && u.size() == this->localRank() && this->containsLocalPoint ( u )

Implements jive::geom::Shape.

virtual void jive::geom::BoundaryPoint::evalNormal	(	const Vector &	q,
		const Vector &	u,
		const Matrix &	c
	)		const

virtual

Fills the vector q with the components of the normal vector in a specific point within this boundary shape: q[i] is set to the i-th component of the normal vector. The vector u should contain the local coordinates of that point: u[i] should be equal to the i-th local coordinate. The matrix c should contain the global node coordinates: c(i,j) should be equal to the i-th global coordinate of the j-th node.

Parameters

q	- a vector that will be filled with the components of the normal vector in the specified point.
u	- a vector containing the local coordinates of that point.
c	- a matrix containing the global node coordinates.

Precondition: q.size() == this->globalRank() && u.size() == this->localRank() && c.size(0) == this->globalRank() && c.size(1) == this->nodeCount()

Implements jive::geom::BoundaryShape.

virtual void jive::geom::BoundaryPoint::getNormals	(	const Matrix &	q,
		const Vector &	w,
		const Matrix &	c
	)		const

virtual

Fills the matrix q with the normal vectors in the integration points of this boundary shape: q(i,j) is set to the i-th component of the normal vector in the j-th integration point. As a bonus, the vector w is filled with the integration weights in the global coordinate system: w[i] is set to the integration weight associated with the i-th integration point. The matrix c should contain the global node coordinates: c(i,j) should be equal to the i-th global coordinate of the j-th node.

Parameters

q	- a matrix that will be filled with the normal vectors in the integration points.
w	- a vector that will be filled with the global integration points.
c	- a matrix containing the global node coordinates.

Precondition: q.size(0) == this->globalRank() && q.size(1) == this->integrationPointCount() && w.size() == this->integrationPointCount() && c.size(0) == this->globalRank() && c.size(1) == this->nodeCount()

Implements jive::geom::BoundaryShape.

virtual void jive::geom::BoundaryPoint::getVertexNormals	(	const Matrix &	q,
		const Matrix &	c
	)		const

virtual

virtual void* jive::geom::BoundaryPoint::getExtByID ( ExtensionID extID ) const

virtual

void jive::geom::BoundaryPoint::init_ ( )

protected

void jive::geom::BoundaryPoint::shapeChanged_ ( )

protected

void jive::geom::BoundaryPoint::xshapeChanged_ ( )

protected

void jive::geom::BoundaryPoint::sshapeChanged_ ( )

protected

void jive::geom::BoundaryPoint::getGlobalPoint_	(	double &	x,
		const Matrix &	c
	)		const

protected

void jive::geom::BoundaryPoint::updateXFuncs_ ( )

protected

void jive::geom::BoundaryPoint::updateSFuncs_ ( )

protected

Public Member Functions

Protected Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
